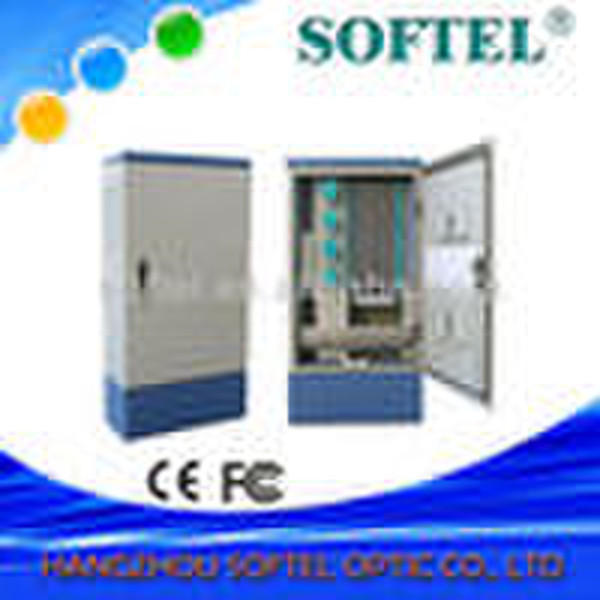

Telecom cabinet Fttx-osd-e

Telecom cabinet Fttx-osd-e the device is mainly used for the obligation, direct transmission and the distribution and attemper of fiber in nodes between the main fiber cable and the branch fiber cable. The maximum capacity for this type of fiber optic splice cabinet is 288 cores and it can be applied to both ribbon and single core fibers to meet the requirements of cities construction programming. The device can also place 12pcs(2*32) PLC. Performance Specifications Work environmental temperature -4060 Work environmental Atmosphere pressure 70kpa106kpa Cabinet material stainless Defense grade IP55CabinetIP68fiber cable entry Connector insertion loss ≤0.18dB Insertion and drawing wear life-span 1000 times Echo loss(FC/PC) ≥40dB Echo loss (FC/APC) ≥50dB Echo loss (FC/UPC) ≥60dB Anti-vibratility Vibration range≥0.6mm Vibration frequency≥80 acceleration≥15m/s2 (XYZ three directions ) Time≥3h No mechanical damage, credible contact, stable performance indexes
