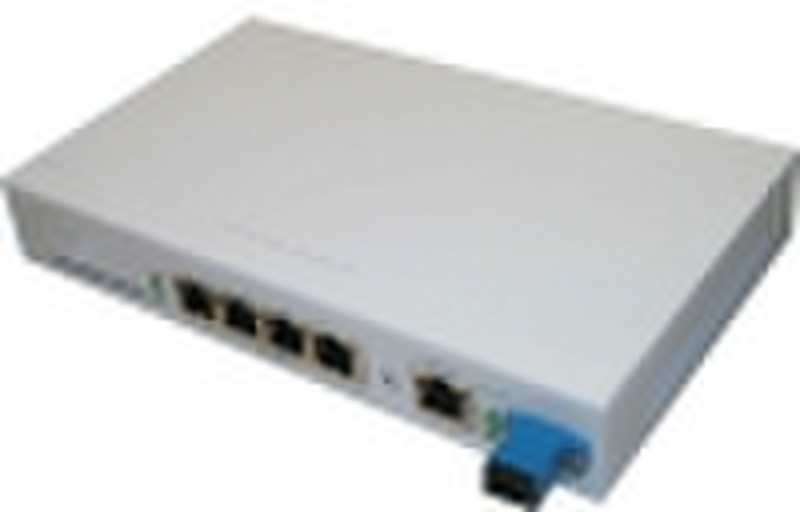

ONU TM-0400P optical network unit

ONUTM-0400P Descriptions TM-0400 ONU designed for FTTH applications is in compliance with IEEE803.2ah 1000Base-PX10/PX20 standard, providing 1 uplink PON port and 4downlink user interfaces (10/100BASE-T). TM-400 is able to cover 10/20km range with the maximum optical splitting ratio of 1:32. It supports local maintenance with command line interface (CLI) and remote OAM network management. Together with the softels OLT equipment, TM-0400 ONU could realize flexible network structure and maintenance and provide total FTTx Solutions. Features: Specially-designed power supply to avoid current surge and external grounding bus for lightning protection are suitable for various conditions; Hardware watch-dog circuit is adopted to avoid microcomputer crash and maintain the systems stability Uplink GE PON port (IEEE 802.3ah) Supports IEEE802.3ah OAM its expansion; Supports Dynamic Bandwidth allocation(DBA) and multiple service level Agreement(SLA); 4fixed 10/1000M BASE-T Ethernet interfaces; Supports IGMP snooping, 16 multi-cast address table; Supports 4094 VLAN(IEEE 802.1Q) Supports port-based rate limitation and bandwidth control; Supports ONU auto-discovery/link detection/remote upgrade of software; Supports VLAN division and user separation to avoid broadcast storm Supports local command Line interface (CLI) and remote WEB/CLI/SNMP network management; Parameters module feature Description PON optical interface Transmitter power 1000BASE-PX10+2 -3dBm 1000BASE-PX20+2 -7dBm Receiver sensitivity 1000BASE-PX10≤-24 dBm 1000BASE-PX20≤-27 dBm Fiber pigtail Single mode connector SC/PC ONU management Bandwidth configuration Uplink: service priority, minimum committed and best-effort bandwidth; Downlink: maximum bandwidth Symbol information ONUS OLT ID, LLID, ONU ID,MAC Address, OAM version, RTT and so forth acquirable ONU authentication Authenticate network entry of ONU Statistics management Gather status of ONUs UNI data flow Port management Manage the status of ONUs Ethernet ports Layer-2 protocol IGMP SNOOPING Supports IGMPv1,V2(report query and leave and snooping) Port separation Physical channel separation of ONU ports based on IEEE802.3ah standard VLAN Support VLAN transparent. VLAN service and VLAN stacking Rate limitation and bandwidth control Support port-based rate limitation and bandwidth control outline Power consumption 6w (when full-load) Size 163mmX115mmX28mm Power supply AC 220V AC220-DC 12V 1A AC input voltage 90 264V
