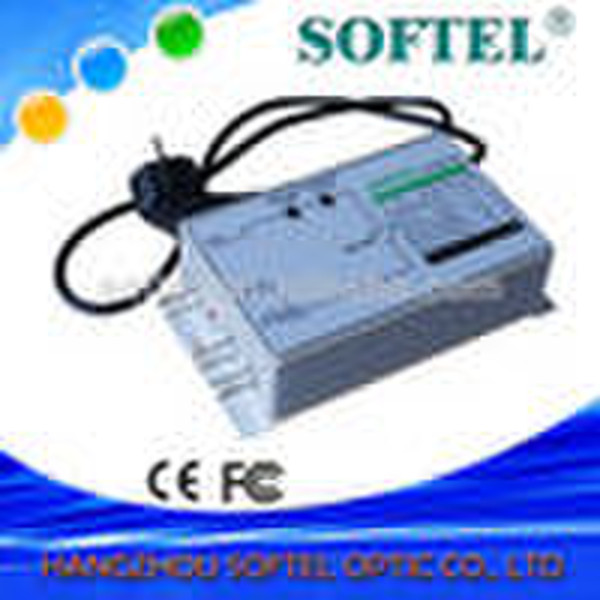

Indoor Amplifier SA802

Indoor Amplifier SA802 Description SA802,SA802-R is house amplifier for indoor use, It is specially designed for the delivery of data, video and voice service. It also provides high RF performance and supports two way transmission (both forward path and reverse path) Ø PHILIPS amplifier module or Chinese amplifier module Ø High gain, high output level and low non-linear. Ø Variable attenuator (0 15dB) and equalizer (0 18dB) in forward path. Ø Two outputs with plug-in splitter or 1-tap. Ø Different frequency split is specified by clients. Ø Local and remote powering available. Ø Weatherproof and RF-screened die-cast housing. Electrical performance Item unitSpecificationForward path Frequency range MHz47/87-862Gain dB30±1Flatness dB±1Gain Adjustment dB0 15Slope Adjustment dB0 18Rated input Level dBuV72Rated output Level dBuV102Noise figure dB≤10C/CTB dB≥58C/CSO dB≥56Group Delay ns≤10(112.25MHz/116.68MHz)Hum Mod. %2Return Loss dB≥14Return Path Frequency Range MHz5-30/65Gain dB15 ± 1.0Flatness dB± 0.75Gain Adjustment dB0 10Rated Output Level dBuV110Noise Figure dB≤12CSO dB≥52Group Delay ns≤20(57MHz/59MHz)Hum Mod. %2Return Loss dB≥16 General Ø Impedance 75Ω Ø Surge Protection 5KV Ø Connectors : F type female connector, imperial thread Ø Power Supply :165 250V 50Hz or 15 60V AC Ø Power consumption :8 VA Ø Operating Temperature : -20 +50 Ø Dimension: 178 (L)*100* (W)*55 (H) mm
